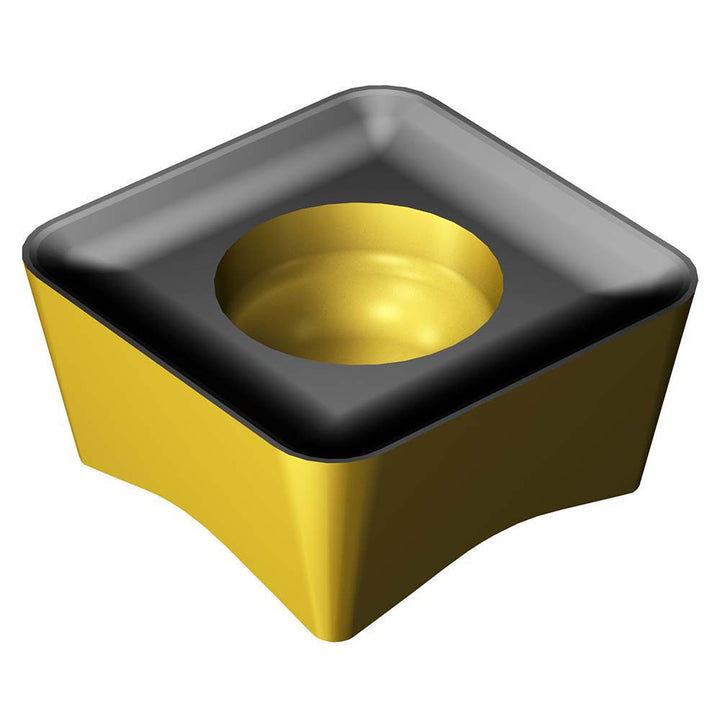

415N-05 02 06M-M30 4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564488

MFR# 7564488ISO/ANSI# 415N-05 02 06M-M30 4340Cat# 415N-05 02 06M-M30 4340Series 415

$16.45List $21.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade4340
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 7564488 is a 415N-05 02 06M-M30 4340 solid carbide indexable insert, grade 4340, TiCN coated. Suited for steel, stainless steel.

Specifications

Ansi code415N-05 02 06M-M30 4340
Chip breakerM30
Coating finishTiCN
Coating processCVD
Corner radius0.0236
Cutter series compatibility415
Cutting edge styleCorner Rounded
Hole diameter0.0866
Included angle degree90
Inscribed circle0.1969
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size05
Insert size code050206
Insert style415
Iso code415N-05 02 06M-M30 4340
Length0.1969
Length range0.0000 to 0.3200
Manufacturers catalog number415N-05 02 06M-M30 4340
Manufacturer grade4340
Material applicationSteel; Stainless Steel
Material gradeP40; M40; K40
Maximum depth of cut0.0335
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle5
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.0870
Thickness range0.0000 to 0.1000
Width0.1969
