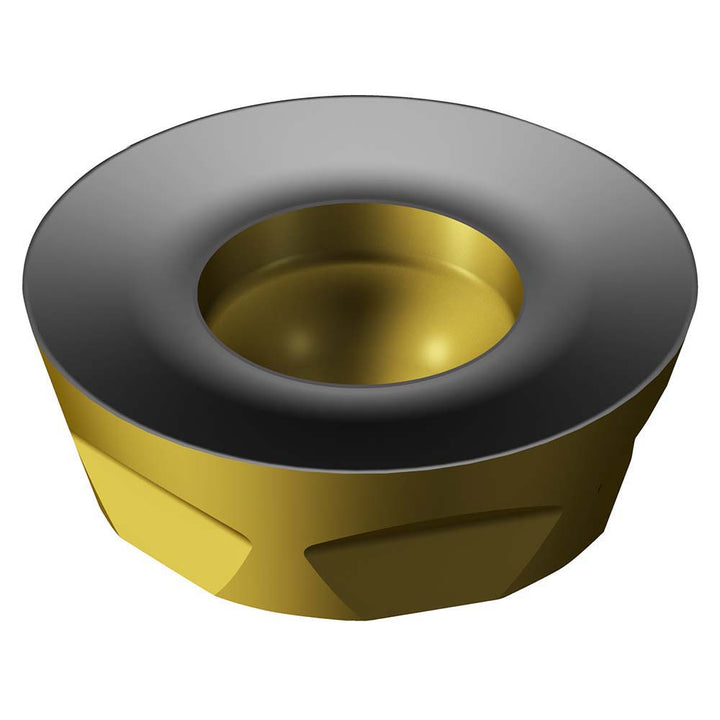

R300-1340M-PM 4330 Solid Carbide Insert, Grade 4330, TiCN - Sandvik Coromant 7564588

Sandvik Coromant

R300-1340M-PM 4330 Solid Carbide Insert, Grade 4330, TiCN - Sandvik Coromant 7564588

MFR# 7564588ISO/ANSI# R300-1340M-PM 4330Cat# R300-1340M-PM 4330Series R300

$16.29List $20.90 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeRound
Grade4330
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 7564588 is a R300-1340M-PM 4330 solid carbide indexable insert, grade 4330, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeR300-1340M-PM 4330
Chip breakerPM
Coating finishTiCN
Coating processCVD
Convex radius0.2500
Corner radius in1/4
Cutter series compatibilityRA300
Cutting edge styleRounded
Hole diameter0.1614
Included angle degree360
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size13
Insert size code1340
Insert styleR300
Iso codeR300-1340M-PM 4330
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberR300-1340M-PM 4330
Manufacturer grade4330
Material applicationSteel; Cast Iron
Material gradeP30; M30; K30
Maximum depth of cut0.1252
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle20
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in1/2
