Sandvik Coromant

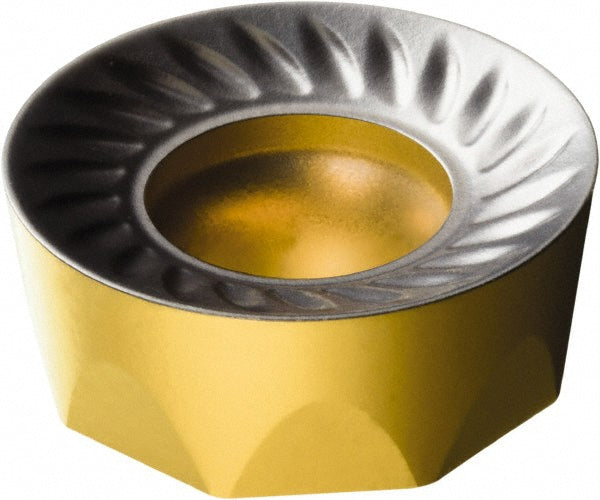

RCKT 10 T3 M0-PM 4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564609
MFR# 7564609ISO/ANSI# RCKT 10 T3 M0-PM 4340Cat# RCKT 10 T3 M0-PM 4340Series RCKT
$18.34List $23.11
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
Grade4340
MaterialSolid Carbide
CoatingTiCN
Description
The Sandvik Coromant 7564609 is a RCKT 10 T3 M0-PM 4340 solid carbide indexable insert, grade 4340, TiCN coated. Suited for steel, stainless steel, cast iron.
Specifications
Ansi codeRCKT 10 T3 M0-PM 4340
Chip breakerPM
Coating finishTiCN
Coating processCVD
Convex radius0.1969
Corner radius (mm)5.00
Cutter series compatibilitySRSC; SRDC
Cutting edge styleRounded
Hole diameter0.1732
Included angle degree360
Inscribed circle0.3937
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size10
Insert size code10T3M0
Insert styleRCKT
Iso codeRCKT 10 T3 M0-PM 4340
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberRCKT 10 T3 M0-PM 4340
Manufacturer grade4340
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeP40; M40; K40
Maximum depth of cut0.1969
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.3937
