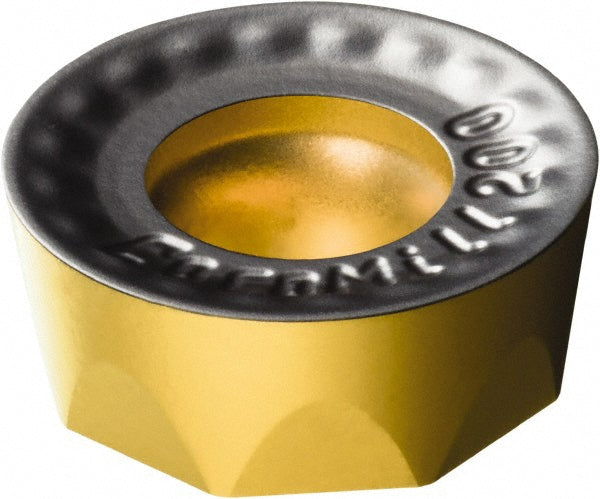

RCKT 19 06 00-PH 4330 Solid Carbide Insert, Grade 4330, TiCN - Sandvik Coromant 7564622

Sandvik Coromant

RCKT 19 06 00-PH 4330 Solid Carbide Insert, Grade 4330, TiCN - Sandvik Coromant 7564622

MFR# 7564622ISO/ANSI# RCKT 19 06 00-PH 4330Cat# RCKT 19 06 00-PH 4330Series RCKT

$32.78List $42.05 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeRound
Grade4330
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 7564622 is a RCKT 19 06 00-PH 4330 solid carbide indexable insert, grade 4330, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeRCKT 19 06 00-PH 4330
Chip breakerPH
Coating finishTiCN
Coating processCVD
Convex radius0.3750
Corner radius in3/8
Cutter series compatibilityRA200
Cutting edge styleRounded
Hole diameter0.2559
Included angle degree360
Inscribed circle in3/4
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size19
Insert size code190600
Insert styleRCKT
Iso codeRCKT 19 06 00-PH 4330
Length in3/4
Length range0.7000 to 0.9000
Manufacturers catalog numberRCKT 19 06 00-PH 4330
Manufacturer grade4330
Material applicationSteel; Cast Iron
Material gradeP30; M30; K30
Maximum depth of cut0.1098
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakePositive
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width in3/4
