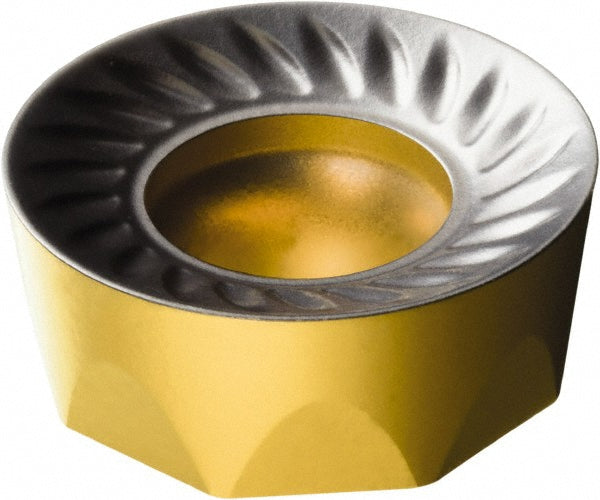

RCKT 19 06 00-PM 4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564625

Sandvik Coromant

RCKT 19 06 00-PM 4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564625

MFR# 7564625ISO/ANSI# RCKT 19 06 00-PM 4340Cat# RCKT 19 06 00-PM 4340Series RCKT

$32.78List $42.05 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeRound
Grade4340
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 7564625 is a RCKT 19 06 00-PM 4340 solid carbide indexable insert, grade 4340, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi codeRCKT 19 06 00-PM 4340
Chip breakerPM
Coating finishTiCN
Coating processCVD
Convex radius0.3750
Corner radius in3/8
Cutter series compatibilityRA200
Cutting edge styleRounded
Hole diameter0.2559
Included angle degree360
Inscribed circle in3/4
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size19
Insert size code190600
Insert styleRCKT
Iso codeRCKT 19 06 00-PM 4340
Length in3/4
Length range0.7000 to 0.9000
Manufacturers catalog numberRCKT 19 06 00-PM 4340
Manufacturer grade4340
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeP40; M40; K40
Maximum depth of cut0.1098
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width in3/4
