QD-NH-0400-RM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 7690517

Sandvik Coromant

QD-NH-0400-RM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 7690517

MFR# 7690517ISO/ANSI# QD-NH-0400-RM 1125Series CoroCut QD

$27.20List $34.88 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Grade1125
MaterialCarbide
CoatingTiAlN

Description

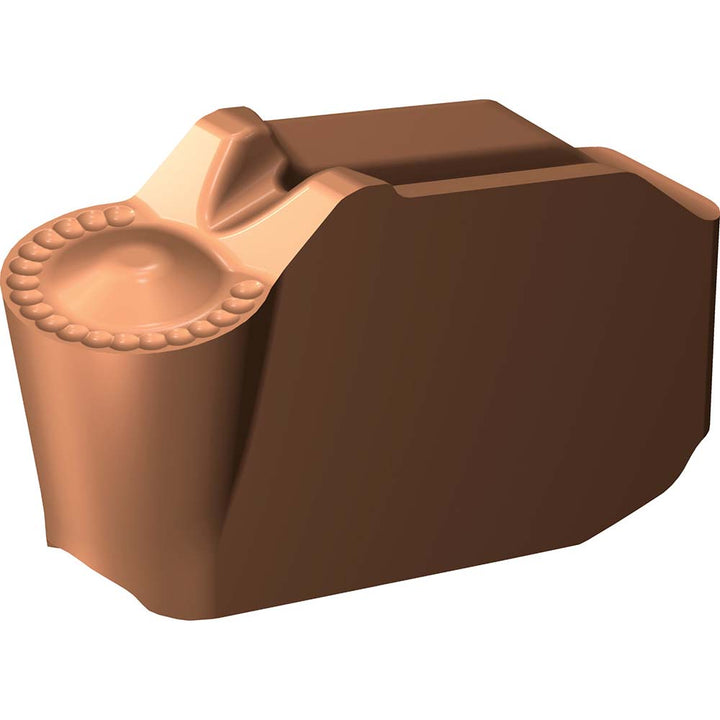

The Sandvik Coromant 7690517 is a QD-NH-0400-RM 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

ApplicationsProfiling; Turning
ChipbreakerRM
Coating finishTiAlN
Coating processPVD
Corner radius0.0788
Hole diameter0.0000
Included angle360
Inscribed circle0.1576
Insert handNeutral
Insert height0.1576
Insert holding methodClamp
Insert materialCarbide
Insert size code0400
Insert styleQD
Iso codeQD-NH-0400-RM 1125
Manufacturer grade1125
Material gradeM25; S25
Maximum depth of cut0.0709
Msc manufacturer numberQD-NH-0400-RM 1125
Number of cutting edges1
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle20
Relief angle7
ShapeRectangle
StandardsQD-NH-0400-RM 1125; QD-NH-0400-RM 1125
Thickness0.1576
Width0.1576
