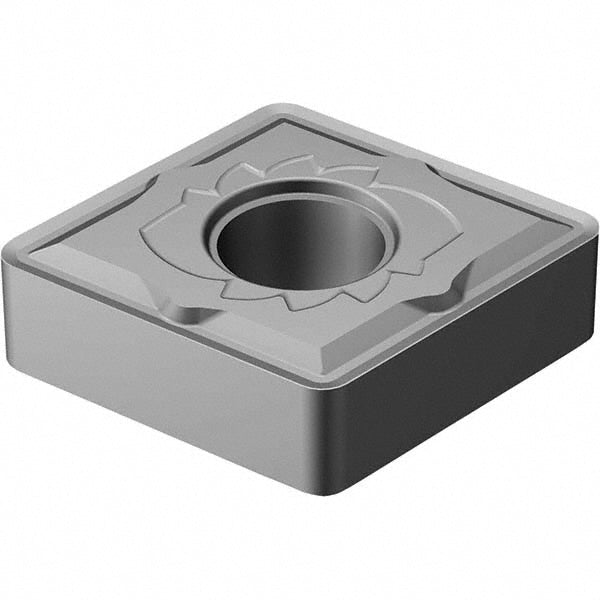

CNMG 12 04 08-SM 6160 Carbide Insert, Grade 6160 - Sandvik Coromant 7702836
MFR# 7702836ISO/ANSI# CNMG 12 04 08-SM 6160Cat# CNMG 432-SM 6160Series T-Max P
$23.91List $30.67
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade6160
MaterialCarbide
Description
The Sandvik Coromant 7702836 is a CNMG 12 04 08-SM 6160 carbide indexable insert, grade 6160. Suited for superalloy, titanium.
Specifications
Chip breakerSM
Clearance codeN
Coating processUncoated
Corner radius0.0313
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1204
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 08-SM 6160
Manufacturers catalog numberCNMG 432-SM 6160
Manufacturer grade6160
Number of cutting edges2
Primary workpiece materialSuperalloy; Titanium
Relief angle0
Tolerance codeM
Wiper edgeNo
