Sandvik Coromant

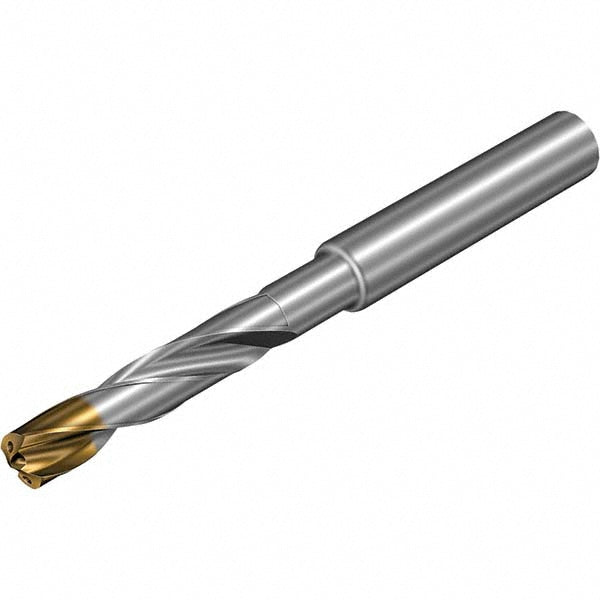

17/32" Solid Carbide Drill Bit, TiAlSiN, 140° point - Sandvik Coromant 7781747
MFR# 7781747Series 860-GM
$649.07List $666.36
Save 2%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size17/32
Flutes2
CoatingTiAlSiN
Description
The Sandvik Coromant 7781747 is a 17/32" Solid Carbide drill bit with a TiAlSiN finish, 140° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 3-1/32 flute length. Series 860-GM.
Specifications
Coating finishTiAlSiN
Coolant throughYes
Cutting directionRight Hand
Double marginNo
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in17/32
Drill bit size range0.5000 - 0.6500
Drill point angle degrees140
Drill point length0.0967
Flute by diameter ratio5xD
Flute length in3-1/32
Flute typeSpiral
Material gradeX1BM
Maximum drilling depth in3-1/32
Number of flats0
Number of flutes2
Overall length4.8819in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter0.5512
Shank length1.8504in
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6535HA
Spiral typeRegular
Tool applicationDrilling
Tool performanceHigh Performance
