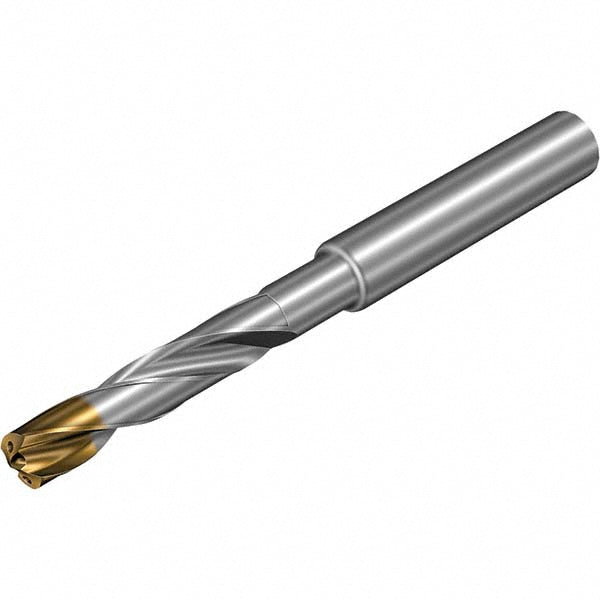

0.2008" Solid Carbide Drill Bit, TiAlSiN, 140° point - Sandvik Coromant 7781808

Sandvik Coromant

0.2008" Solid Carbide Drill Bit, TiAlSiN, 140° point - Sandvik Coromant 7781808

MFR# 7781808Series 860-GM

$279.13List $358.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiAlSiN

Description

The Sandvik Coromant 7781808 is a 0.2008" Solid Carbide drill bit with a TiAlSiN finish, 140° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. Series 860-GM.

Specifications

Coating finishTiAlSiN
Coolant throughYes
Cutting directionRight Hand
Double marginNo
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.2008
Drill bit size range0.2000 - 0.2500
Drill point angle degrees140
Drill point length0.0354
Flute by diameter ratio10xD
Flute length2.4409
Flute typeSpiral
Material gradeX1BM
Maximum drilling depth2.4409
Number of flats0
Number of flutes2
Overall length4.0945in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter0.2362
Shank length1.6536in
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6535HA
Spiral typeRegular
Tool applicationDrilling
Tool performanceHigh Performance
