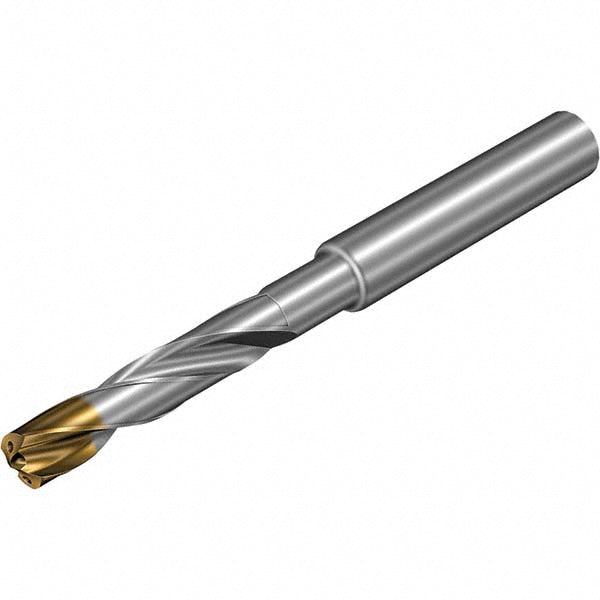

0.2165" Solid Carbide Drill Bit, Multi-layer, 140° point - Sandvik Coromant 7781822

Sandvik Coromant

0.2165" Solid Carbide Drill Bit, Multi-layer, 140° point - Sandvik Coromant 7781822

MFR# 7781822Series 860-GM

$255.38List $327.53 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingMulti-layer

Description

The Sandvik Coromant 7781822 is a 0.2165" Solid Carbide drill bit with a Multi-layer finish, 140° point. Suited for steel, cast iron, hardened materials. Series 860-GM.

Specifications

Coating finishMulti-layer
Coolant throughYes
Cutting directionRight Hand
Double marginNo
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.2165
Drill bit size range0.2000 - 0.2500
Drill point angle degrees140
Drill point length0.0354
Flute by diameter ratio10xD
Flute length2.4409
Flute typeRegular Spiral
Material gradeX1BM
Maximum drilling depth2.4409
Number of flats0
Number of flutes2
Overall length4.0945
Point typeStandard
Primary workpiece materialSteel; Cast Iron; Hardened Materials
Shank diameter0.2362
Shank length1.6536
Shank typeStraight
Specification designationDIN
Specification numberDIN 6535HA
Spiral typeRegular
Tool applicationDrilling
Tool performanceHigh Performance
