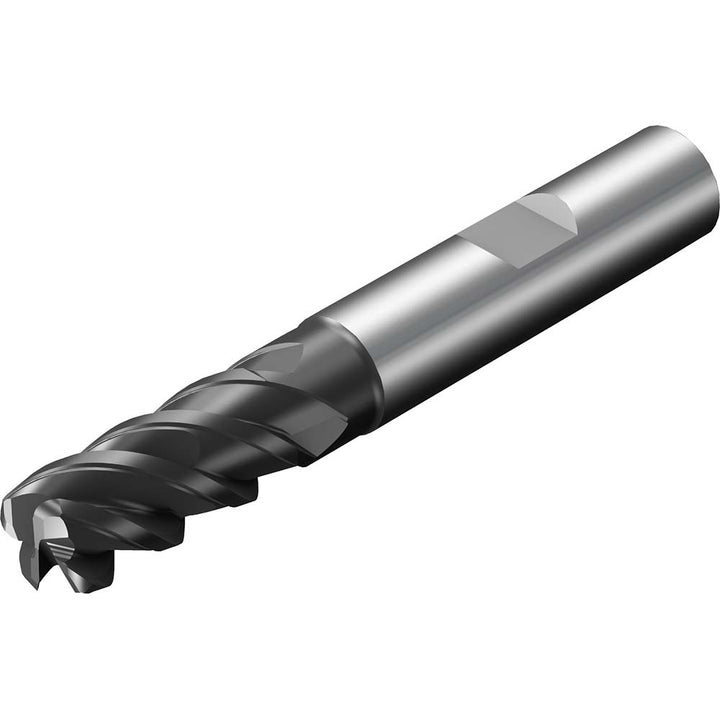

1/2" 4-Flute Solid Carbide Corner Radius End Mill, TiAlN - Sandvik Coromant 7858295

Sandvik Coromant

1/2" 4-Flute Solid Carbide Corner Radius End Mill, TiAlN - Sandvik Coromant 7858295

MFR# 7858295Series 2S440

$287.14List $368.28 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 7858295 is a 1/2 4-flute Solid Carbide corner radius end mill with a TiAlN finish for longer tool life. Suited for superalloys & titanium. 1-1/8 length of cut, 3-1/2 overall length. Series 2S440.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Corner radius0.0600
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeHelical
For use withToolholder
Helix styleHigh
Length of cut in1-1/8
Length typeExtended
Material applicationSuperalloys & Titanium
Material removal typeRoughing & Finishing
Mill diameter in1/2
Mill diameter toleranceh9
Neck diameter0.4750
Number of flutes4
Overall length in3-1/2
PitchNormal
Primary workpiece materialSuperalloys & Titanium
Reach length in1-7/16
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeWeldon Flat
Single or double endSingle
Variable helixNo
Variable indexNo
