Sandvik Coromant

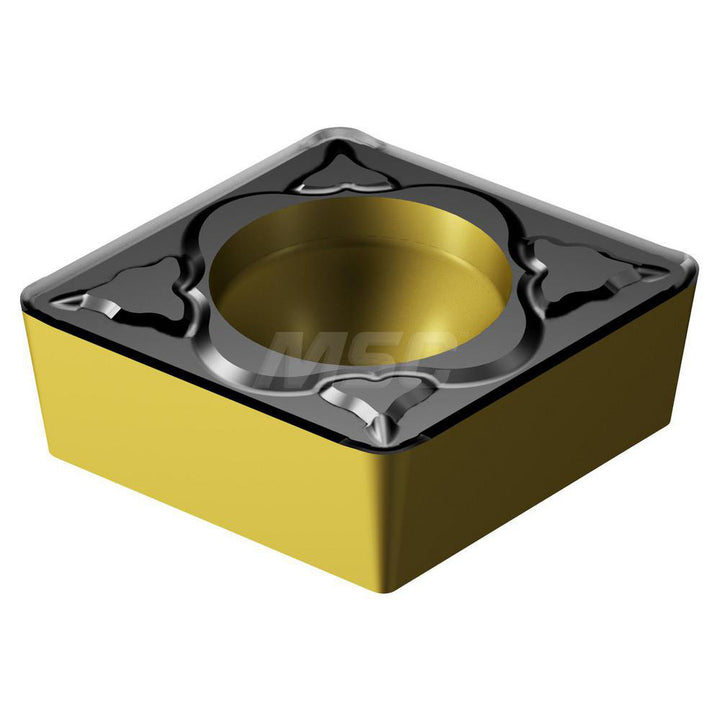

CCMT 09 T3 04-PM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7858988
MFR# 7858988ISO/ANSI# CCMT09T304Cat# CCMT 3(2.5)1-PM 4415Series CoroTurn 107
$16.49List $21.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeC - Diamond (Rhombic) 80-Deg
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7858988 is a CCMT 09 T3 04-PM 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Ansi insert codeCCMT32.51
Ansi size code32.51
Chip breakerPM
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle80
Inscribed circle0.3750
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code09T3
Insert styleCCMT
Insert thickness0.1563
Iso codeCCMT 09 T3 04-PM 4415
Iso insert codeCCMT09T304
Iso size code09T304
Manufacturers catalog numberCCMT 3(2.5)1-PM 4415
Manufacturer grade4415
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Side clearancePositive
Tolerance codeM
Wiper edgeNo
