Sandvik Coromant

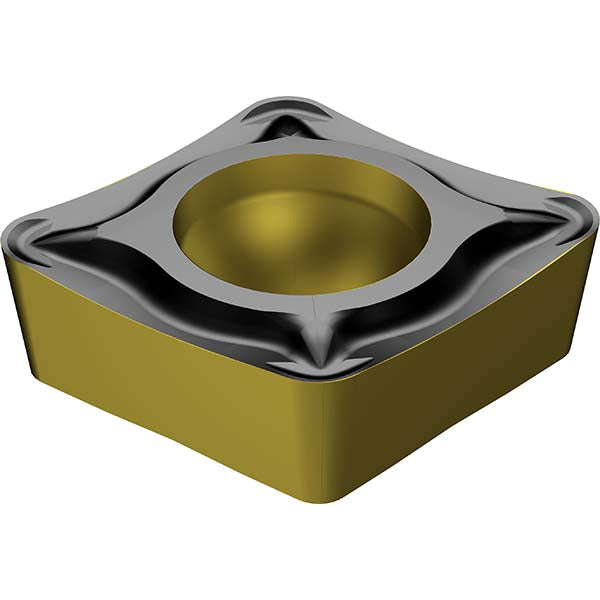

CCMT 06 02 04-UM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859078
MFR# 7859078ISO/ANSI# CCMT 06 02 04-UM 4415Cat# CCMT2(1.5)1UM4415Series CoroTurn 107
$15.33List $19.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859078 is a CCMT 06 02 04-UM 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code0602
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT 06 02 04-UM 4415
Manufacturers catalog numberCCMT2(1.5)1UM4415
Manufacturer grade4415
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
