Sandvik Coromant
CCMT 12 04 12-PM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859102
MFR# 7859102ISO/ANSI# CCMT 12 04 12-PM 4415Cat# CCMT 433-PM 4415Series CoroTurn 107
$25.32List $31.91
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description

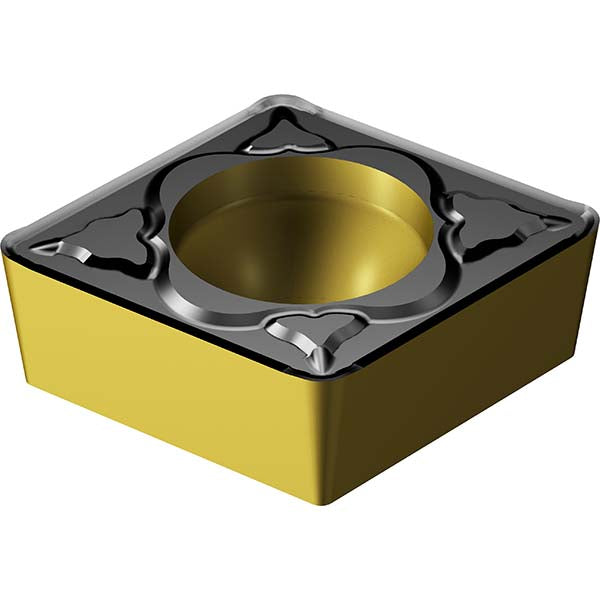

The Sandvik Coromant 7859102 is a CCMT 12 04 12-PM 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerT
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1204
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT 12 04 12-PM 4415
Manufacturers catalog numberCCMT 433-PM 4415
Manufacturer grade4415
Relief angle7
Tolerance codeM
