Sandvik Coromant

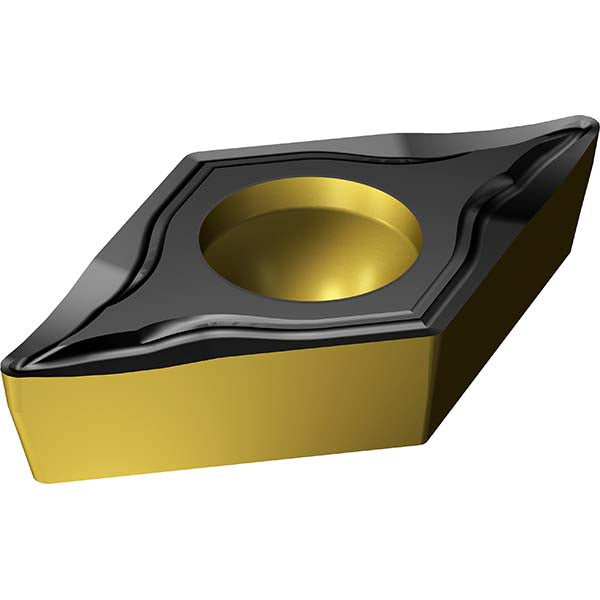

DCMT 07 02 08-UM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859109
MFR# 7859109ISO/ANSI# DCMT070208Cat# DCMT 2(1.5)2-UM 4415Series CoroTurn 107
$15.33List $19.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeD - Diamond (Rhombic) 55-Deg
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859109 is a DCMT 07 02 08-UM 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Ansi insert codeDCMT
Chip breakerUM
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle55
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code0702
Insert styleDCMT
Insert thickness0.0938
Iso codeDCMT 07 02 08-UM 4415
Iso insert codeDCMT070208
Iso size code070208
Manufacturers catalog numberDCMT 2(1.5)2-UM 4415
Manufacturer grade4415
Relief angle7
Side clearancePositive
Tolerance codeM
