Sandvik Coromant
DCMT 11 T3 04-UF 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859111
MFR# 7859111ISO/ANSI# DCMT 11 T3 04-UF 4415Cat# DCMT 3(2.5)1-UF 4415Series CoroTurn 107
$20.59List $26.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description

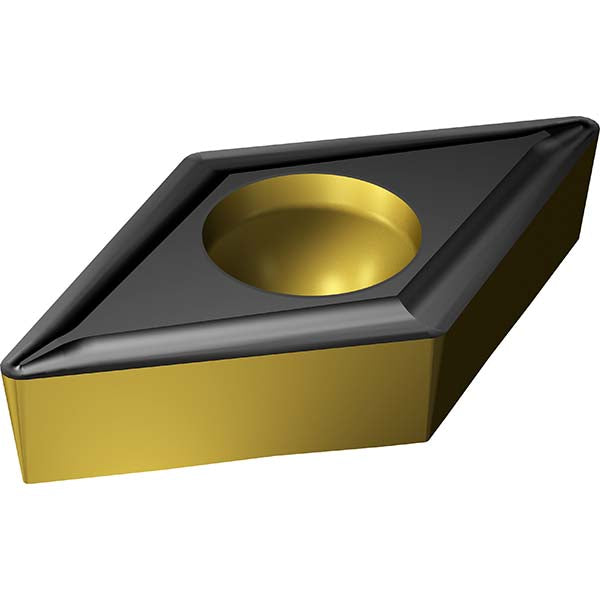

The Sandvik Coromant 7859111 is a DCMT 11 T3 04-UF 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Chip breakerUF
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleDCMT
Insert thickness0.1563
Iso codeDCMT 11 T3 04-UF 4415
Manufacturers catalog numberDCMT 3(2.5)1-UF 4415
Manufacturer grade4415
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
