Sandvik Coromant

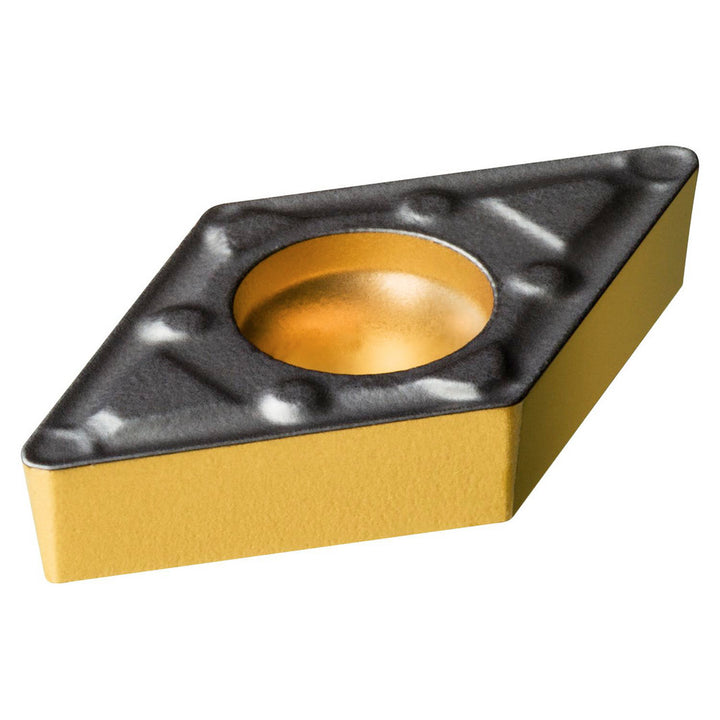

DCMX 07 02 04-WF 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859121
MFR# 7859121ISO/ANSI# DCMX 07 02 04-WF 4415Cat# DCMX 2(1.5)1-WF 4415Series CoroTurn 107
$16.11List $20.30
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859121 is a DCMX 07 02 04-WF 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Chip breakerWF
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Hole diameter0.1102
Included angle55
Inscribed circle0.1102
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleDCMX
Insert thickness0.0938
Iso codeDCMX 07 02 04-WF 4415
Manufacturers catalog numberDCMX 2(1.5)1-WF 4415
Manufacturer grade4415
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeYes
