Sandvik Coromant

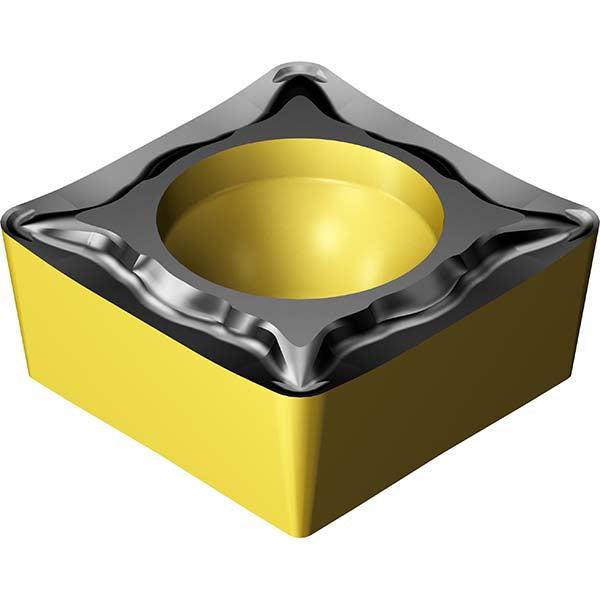

SCMT 09 T3 08-UM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859130
MFR# 7859130ISO/ANSI# SCMT 09 T3 08-UM 4415Cat# SCMT 3(2.5)2-UM 4415Series CoroTurn 107
$17.07List $21.50
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Check price & lead time first →- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859130 is a SCMT 09 T3 08-UM 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Hole diameter0.1732
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeSquare
Insert size code09T3
Insert styleSCMT
Insert thickness0.1563
Iso codeSCMT 09 T3 08-UM 4415
Manufacturers catalog numberSCMT 3(2.5)2-UM 4415
Manufacturer grade4415
Number of cutting edges4
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
