Sandvik Coromant

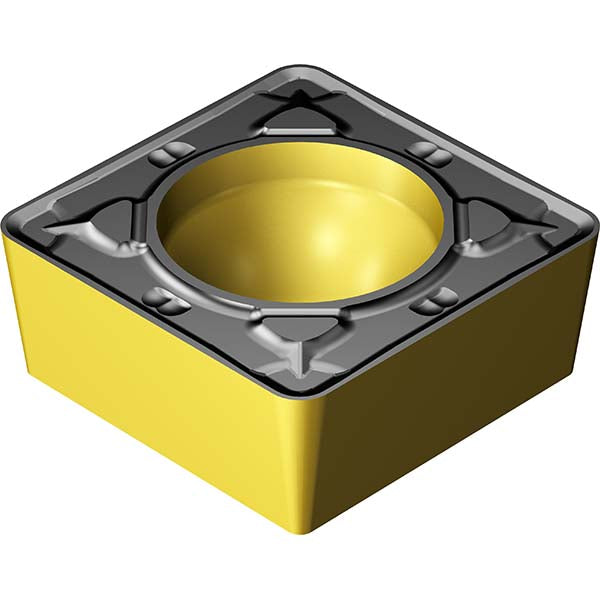

SCMT 12 04 08-PR 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859135
MFR# 7859135ISO/ANSI# SCMT 12 04 08-PR 4415Cat# SCMT 432-PR 4415Series CoroTurn 107
$21.34List $26.90
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859135 is a SCMT 12 04 08-PR 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerT
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeSquare
Insert size code1204
Insert styleSCMT
Insert thickness in3/16
Iso codeSCMT 12 04 08-PR 4415
Manufacturers catalog numberSCMT 432-PR 4415
Manufacturer grade4415
Relief angle7
Tolerance codeM
