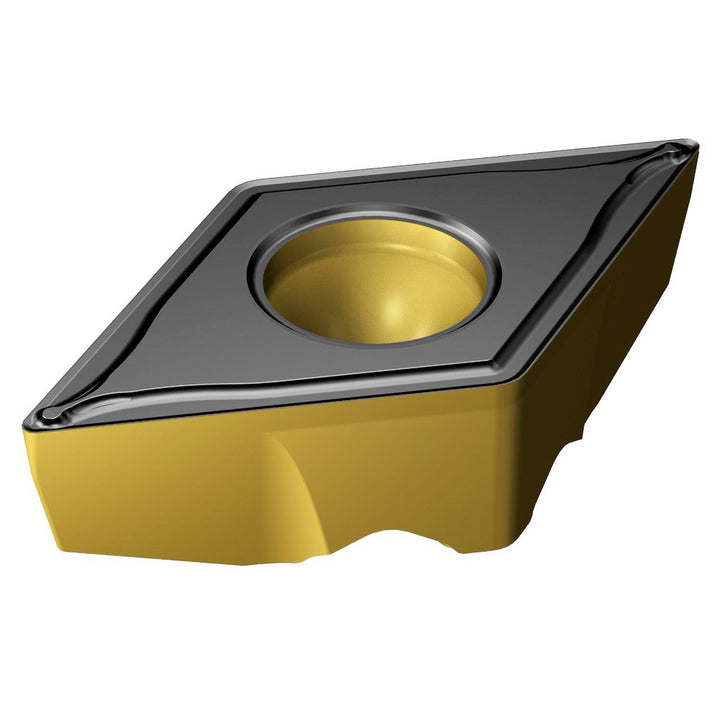

TR-DC1304-F 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859140

Sandvik Coromant

TR-DC1304-F 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859140

MFR# 7859140ISO/ANSI# TR-DC1304-F 4415Cat# TR-DC1304-F 4415Series CoroTurn TR

$22.74List $28.65 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 7859140 is a TR-DC1304-F 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.

Specifications

Chip breakerF
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Hole diameter0.1457
Included angle60
Inscribed circle0.1457
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1304
Insert styleTRDC
Insert thickness0.2175
Iso codeTR-DC1304-F 4415
Manufacturers catalog numberTR-DC1304-F 4415
Manufacturer grade4415
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Wiper edgeNo
