Sandvik Coromant
TR-VB1312-F 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859146
MFR# 7859146ISO/ANSI# TR-VB1312-F 4415Cat# TR-VB1312-F 4415Series CoroTurn TR
$30.40List $38.99
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description

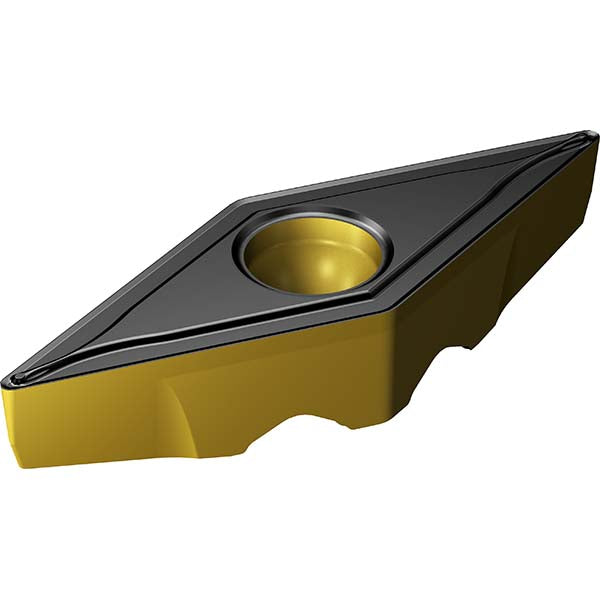

The Sandvik Coromant 7859146 is a TR-VB1312-F 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Included angle35
Inscribed circle0.3150
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1312
Insert styleTRVB
Insert thickness0.1782
Iso codeTR-VB1312-F 4415
Manufacturers catalog numberTR-VB1312-F 4415
Manufacturer grade4415
Relief angle5
