Sandvik Coromant
CNMG 12 04 04-WL 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859148
MFR# 7859148ISO/ANSI# CNMG 12 04 04-WL 4415Cat# CNMG431WL4415Series T-Max P
$21.56List $27.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description

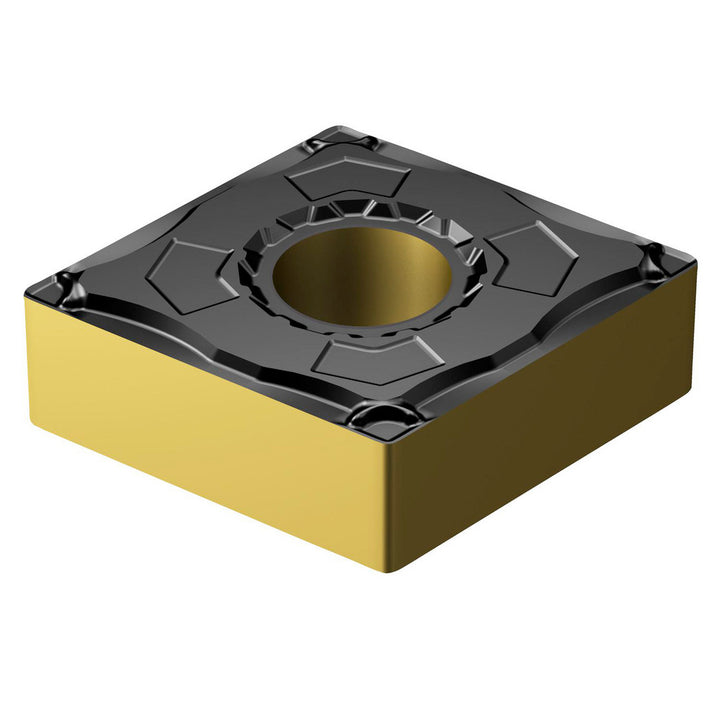

The Sandvik Coromant 7859148 is a CNMG 12 04 04-WL 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Chip breakerWL
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Hole diameter0.2030
Included angle80
Inscribed circle0.2030
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1204
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 04-WL 4415
Manufacturers catalog numberCNMG431WL4415
Manufacturer grade4415
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Tolerance codeM
Wiper edgeYes
