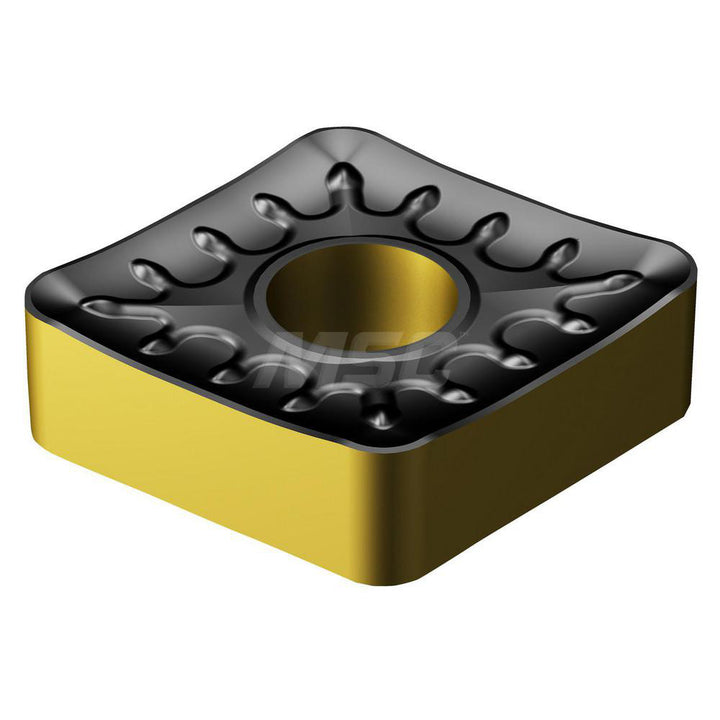

CNMM 16 06 16-QR 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859155
MFR# 7859155ISO/ANSI# CNMM 16 06 16-QR 4415Cat# CNMM 544-QR 4415Series T-Max P
$32.67List $41.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859155 is a CNMM 16 06 16-QR 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Chip breakerQR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Hole diameter0.2500
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1606
Insert styleCNMM
Insert thickness in1/4
Iso codeCNMM 16 06 16-QR 4415
Manufacturers catalog numberCNMM 544-QR 4415
Manufacturer grade4415
Number of cutting edges2
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
