Sandvik Coromant
CNMM 16 06 24-QR 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859156
MFR# 7859156ISO/ANSI# CNMM 16 06 24-QR 4415Cat# CNMM 546-QR 4415Series T-Max P
$30.16List $38.02
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description

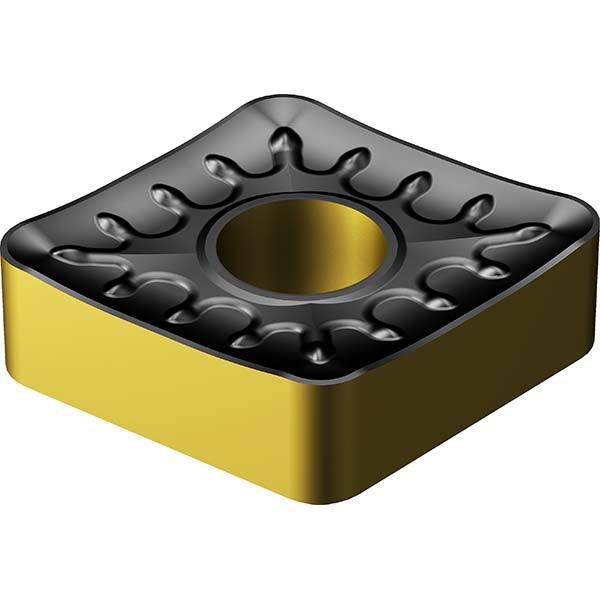

The Sandvik Coromant 7859156 is a CNMM 16 06 24-QR 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0938
Included angle80
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1606
Insert styleCNMM
Insert thickness in1/4
Iso codeCNMM 16 06 24-QR 4415
Manufacturers catalog numberCNMM 546-QR 4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
