Sandvik Coromant

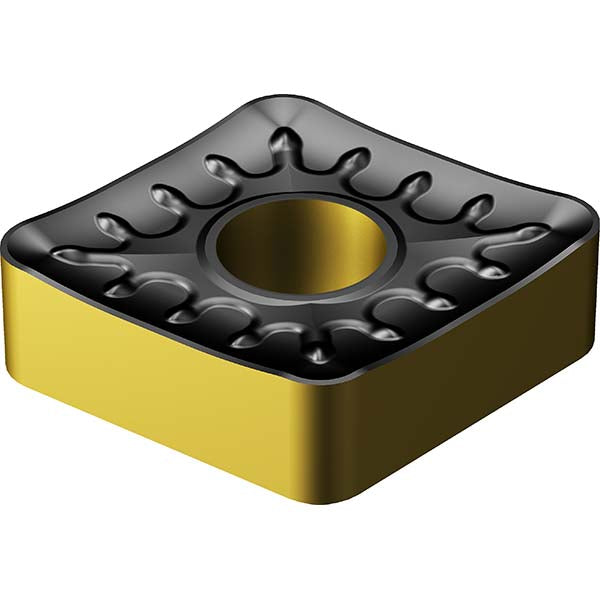

CNMM 19 06 12-QR 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859157
MFR# 7859157ISO/ANSI# CNMM 19 06 12-QR 4415Cat# CNMM 643-QR 4415Series T-Max P
$45.64List $58.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859157 is a CNMM 19 06 12-QR 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Included angle80
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1906
Insert styleCNMM
Insert thickness in1/4
Iso codeCNMM 19 06 12-QR 4415
Manufacturers catalog numberCNMM 643-QR 4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
