Sandvik Coromant
DNMG 15 06 08-LC 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859163
MFR# 7859163ISO/ANSI# DNMG 15 06 08-LC 4415Cat# DNMG 442-LC 4415Series T-Max P
$29.14List $36.72
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description

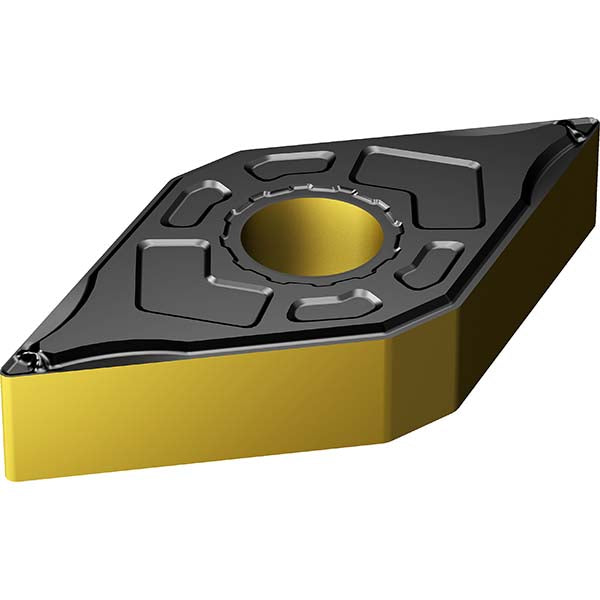

The Sandvik Coromant 7859163 is a DNMG 15 06 08-LC 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1506
Insert styleDNMG
Insert thickness in1/4
Iso codeDNMG 15 06 08-LC 4415
Manufacturers catalog numberDNMG 442-LC 4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
