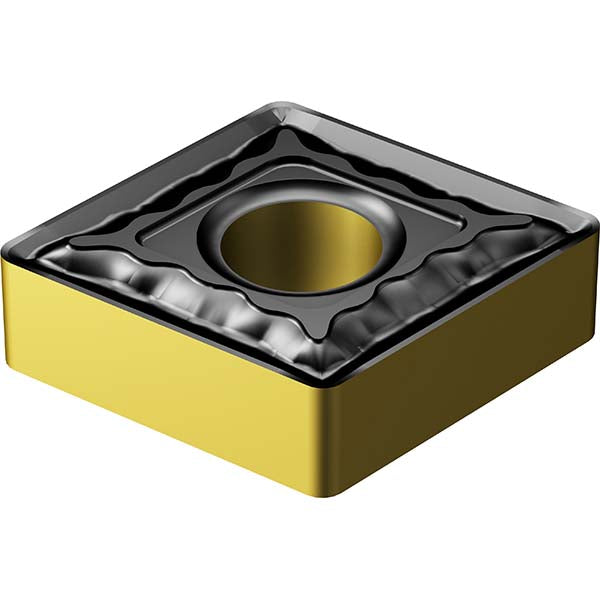

CNMG 12 04 12-QM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859172
MFR# 7859172ISO/ANSI# CNMG120412Cat# CNMG 433-QM 4415Series T-Max P
$19.48List $24.55
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859172 is a CNMG 12 04 12-QM 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Ansi insert codeCNMG433
Ansi size code433
Chip breakerQM
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code1204
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 12-QM 4415
Iso insert codeCNMG120412
Iso size code120412
Manufacturers catalog numberCNMG 433-QM 4415
Manufacturer grade4415
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
