Sandvik Coromant

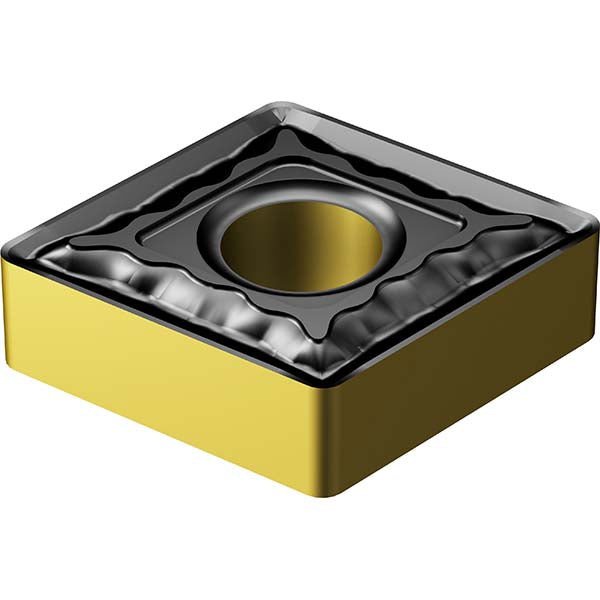

CNMG 12 04 16-QM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859173
MFR# 7859173ISO/ANSI# CNMG 12 04 16-QM 4415Cat# CNMG 434-QM 4415Series T-Max P
$20.77List $26.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859173 is a CNMG 12 04 16-QM 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1204
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 16-QM 4415
Manufacturers catalog numberCNMG 434-QM 4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
