Sandvik Coromant

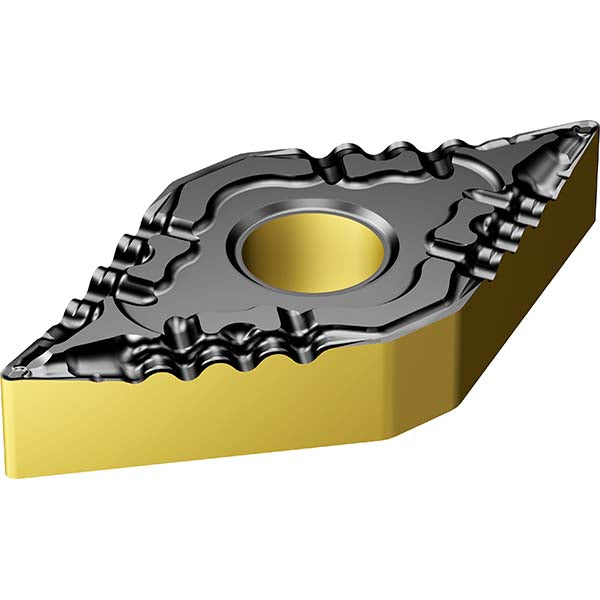

DNMG 11 04 12-PF 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859208
MFR# 7859208ISO/ANSI# DNMG 11 04 12-PF 4415Cat# DNMG 333-PF 4415Series T-Max P
$20.06List $25.27
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859208 is a DNMG 11 04 12-PF 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1104
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 11 04 12-PF 4415
Manufacturers catalog numberDNMG 333-PF 4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
