Sandvik Coromant

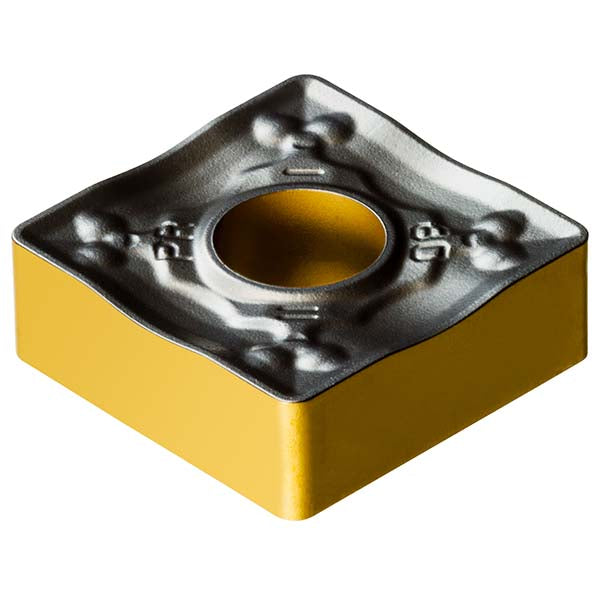

SNMM 15 06 16-PR 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859217
MFR# 7859217ISO/ANSI# SNMM 15 06 16-PR 4415Cat# SNMM 544-PR 4415Series T-Max P
$29.64List $38.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeSquare
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859217 is a SNMM 15 06 16-PR 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeSquare
Insert size code1506
Insert styleSNMM
Insert thickness in1/4
Iso codeSNMM 15 06 16-PR 4415
Manufacturers catalog numberSNMM 544-PR 4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
