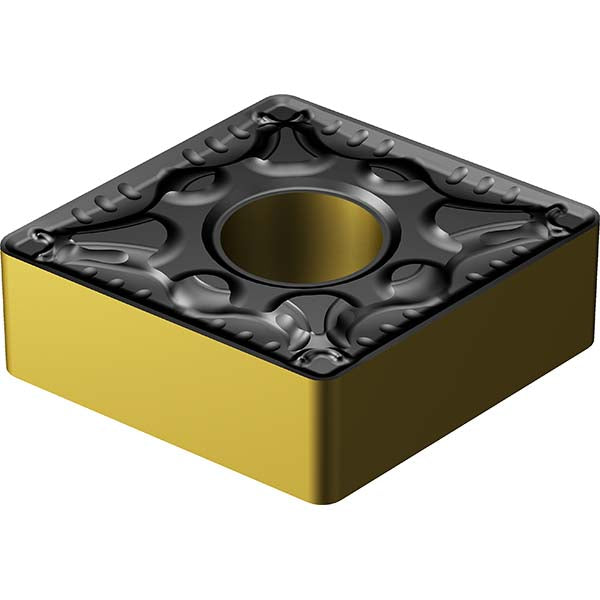

CNMG 16 06 08-PM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859225

Sandvik Coromant

CNMG 16 06 08-PM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859225

MFR# 7859225ISO/ANSI# CNMG 16 06 08-PM 4415Cat# CNMG 542-PM 4415Series T-Max P

$33.29List $41.96 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 7859225 is a CNMG 16 06 08-PM 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.

Specifications

Chip breakerPM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Hole diameter0.2500
Included angle80
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1606
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 16 06 08-PM 4415
Manufacturers catalog numberCNMG 542-PM 4415
Manufacturer grade4415
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
