Sandvik Coromant

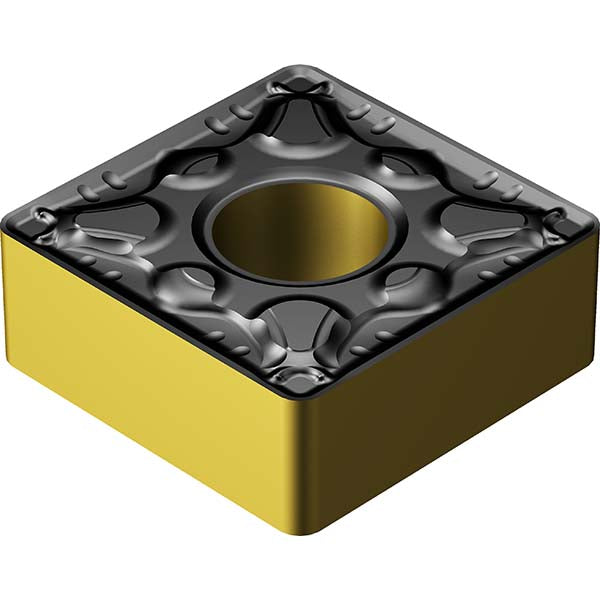

SNMG 12 04 04-PM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859238
MFR# 7859238ISO/ANSI# SNMG 12 04 04-PM 4415Cat# SNMG 431-PM 4415Series T-Max P
$24.97List $31.46
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859238 is a SNMG 12 04 04-PM 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Hole diameter0.2030
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeSquare
Insert size code1204
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG 12 04 04-PM 4415
Manufacturers catalog numberSNMG 431-PM 4415
Manufacturer grade4415
Number of cutting edges8
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
