Sandvik Coromant

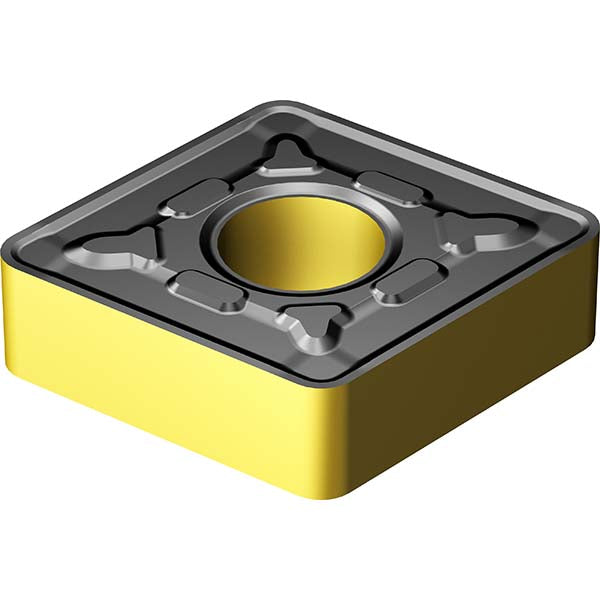

CNMG 16 06 16-PR 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859253
MFR# 7859253ISO/ANSI# CNMG 16 06 16-PR 4415Cat# CNMG544PR4415Series T-Max P
$30.30List $38.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859253 is a CNMG 16 06 16-PR 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Chip breakerPR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Hole diameter0.2500
Included angle80
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1606
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 16 06 16-PR 4415
Manufacturers catalog numberCNMG544PR4415
Manufacturer grade4415
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
