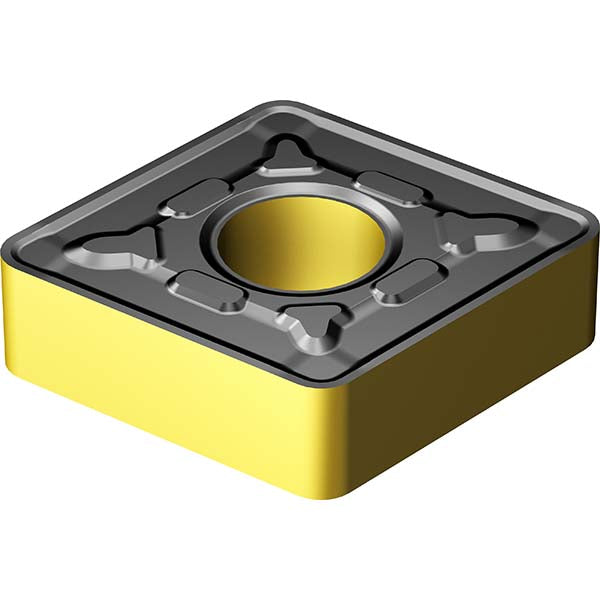

CNMG 19 06 12-PR 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859256
MFR# 7859256ISO/ANSI# CNMG190612Cat# CNMG 643-PR 4415Series T-Max P
$51.66List $65.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeC - Diamond (Rhombic) 80-Deg
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859256 is a CNMG 19 06 12-PR 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Ansi insert codeCNMG
Chip breakerPR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.3120
Included angle80
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code1906
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 19 06 12-PR 4415
Iso insert codeCNMG190612
Iso size code190612
Manufacturers catalog numberCNMG 643-PR 4415
Manufacturer grade4415
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
