Sandvik Coromant

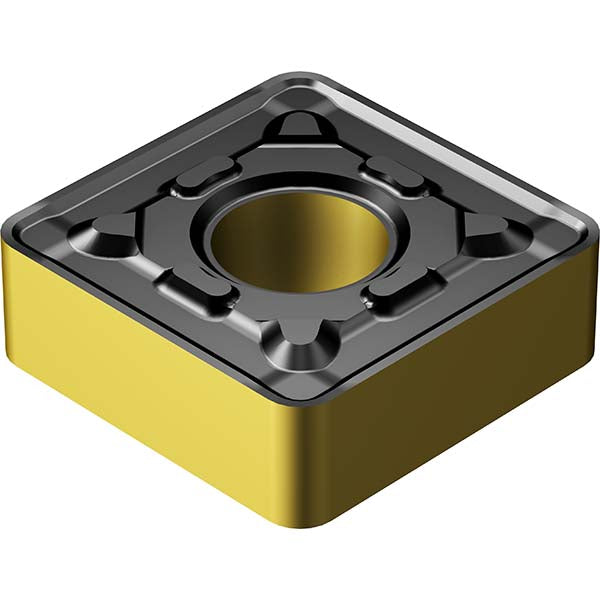

SNMG 12 04 12-PR 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859267
MFR# 7859267ISO/ANSI# SNMG 12 04 12-PR 4415Cat# SNMG 433-PR 4415Series T-Max P
$20.67List $26.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859267 is a SNMG 12 04 12-PR 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeSquare
Insert size code1204
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG 12 04 12-PR 4415
Manufacturers catalog numberSNMG 433-PR 4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
