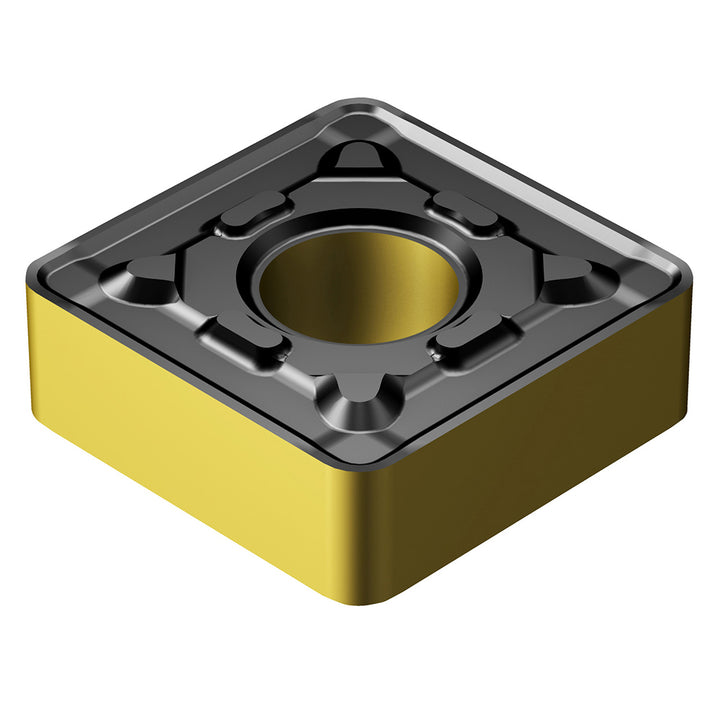

SNMG 19 06 24-PR 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7859275
MFR# 7859275ISO/ANSI# SNMG 19 06 24-PR 4415Cat# SNMG 646-PRSeries T-Max P
$46.85List $59.04
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
Grade4415
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7859275 is a SNMG 19 06 24-PR 4415 carbide indexable insert, grade 4415, Al2O3 coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0938
Industry standard numberSNMG 19 06 24-PR 4415
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code190624
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG 19 06 24-PR 4415
Manufacturers catalog numberSNMG 646-PR
Manufacturer grade4415
Relief angle0
Tolerance codeM
