Sandvik Coromant

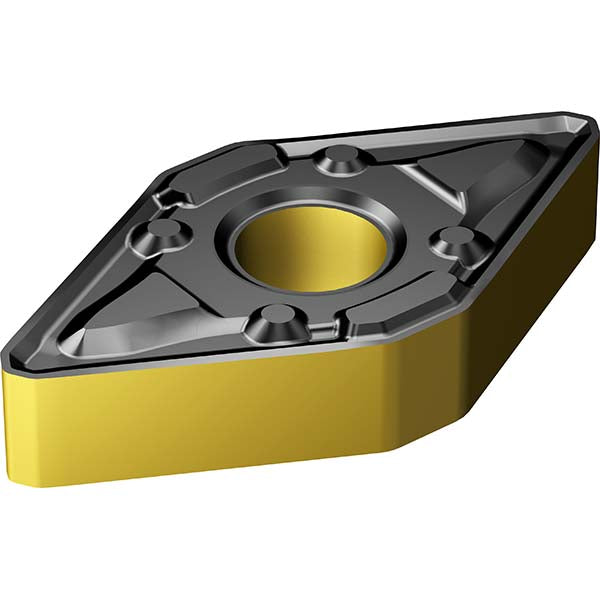

DNMX 11 04 08-WM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859282
MFR# 7859282ISO/ANSI# DNMX 11 04 08-WM 4415Cat# DNMX 332-WM 4415Series T-Max P
$23.14List $29.16
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859282 is a DNMX 11 04 08-WM 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerX
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1104
Insert styleDNMX
Insert thickness in3/16
Iso codeDNMX 11 04 08-WM 4415
Manufacturers catalog numberDNMX 332-WM 4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
