CNMG 12 04 12-XMR 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859300
MFR# 7859300ISO/ANSI# CNMG 12 04 12-XMR 4415Cat# CNMG433XMR4415Series T-Max P
$19.72List $24.86
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description

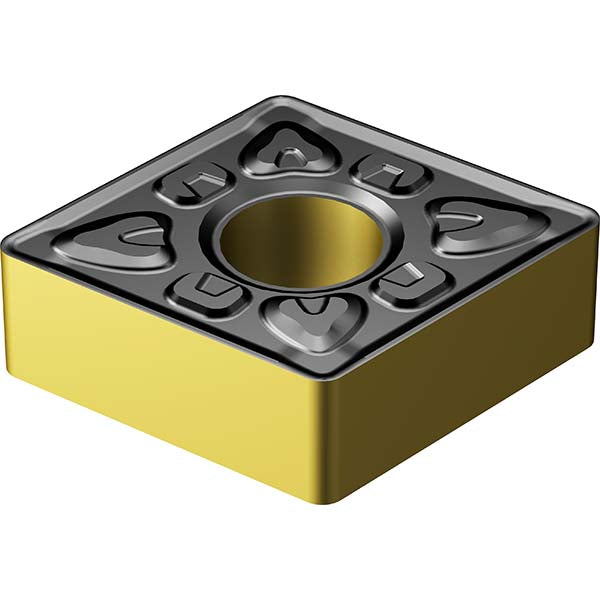

The Sandvik Coromant 7859300 is a CNMG 12 04 12-XMR 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1204
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 12-XMR 4415
Manufacturers catalog numberCNMG433XMR4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
