Sandvik Coromant

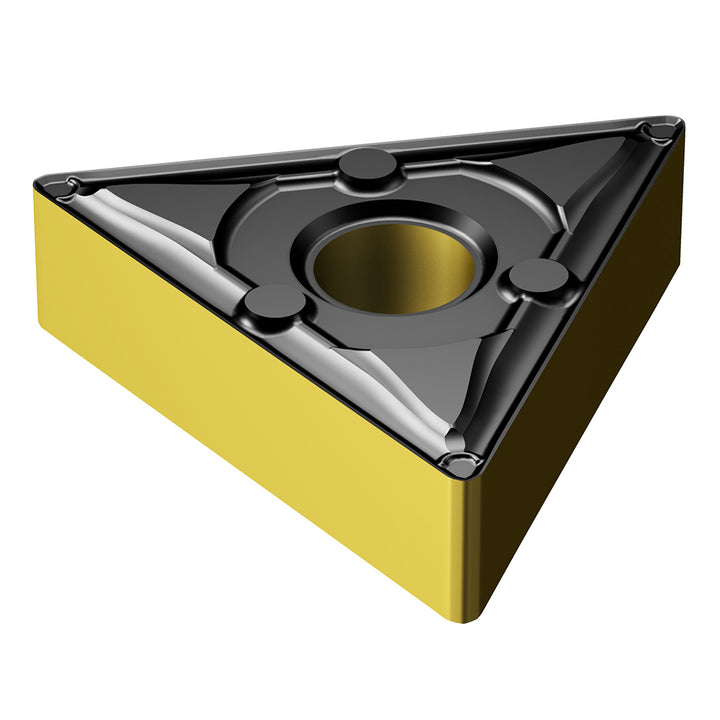

TNMX 16 04 08-WF 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860428
MFR# 7860428ISO/ANSI# TNMX 16 04 08-WF 4415Cat# TNMX 332-WFSeries T-Max P
$19.49List $25.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade4415
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860428 is a TNMX 16 04 08-WF 4415 carbide indexable insert, grade 4415, Al2O3 coated.
Specifications
Chip breakerX
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0313
Included angle60
Industry standard numberTNMX 16 04 08-WF 4415
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code160408
Insert styleTNMX
Insert thickness in3/16
Iso codeTNMX 16 04 08-WF 4415
Manufacturers catalog numberTNMX 332-WF
Manufacturer grade4415
Relief angle0
Tolerance codeM
