Sandvik Coromant

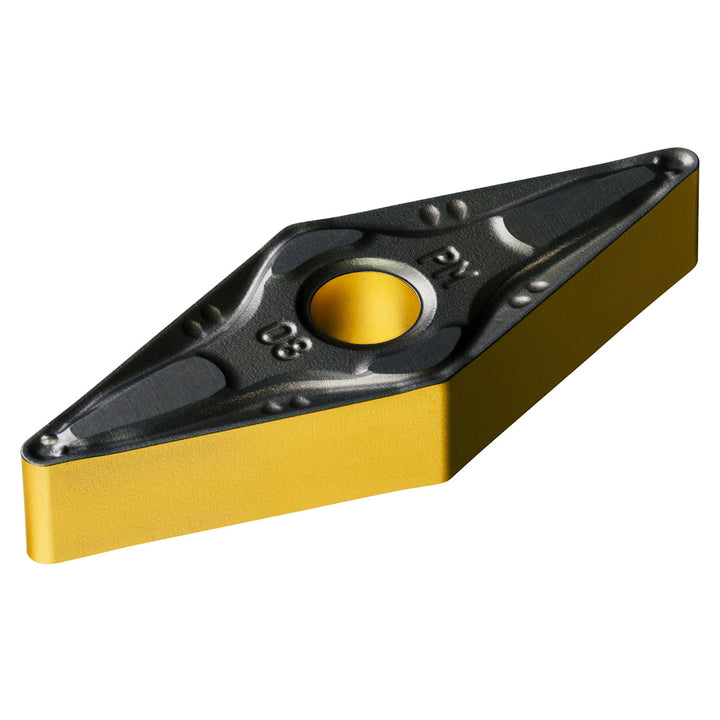

VNMG 16 04 08-PM 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860465
MFR# 7860465ISO/ANSI# VNMG 16 04 08-PM 4415Cat# VNMG 332-PMSeries T-Max P
$34.89List $44.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade4415
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860465 is a VNMG 16 04 08-PM 4415 carbide indexable insert, grade 4415, Al2O3 coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.1500
Included angle35
Industry standard numberVNMG 16 04 08-PM 4415
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1604
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG 16 04 08-PM 4415
Manufacturers catalog numberVNMG 332-PM
Manufacturer grade4415
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
