Sandvik Coromant

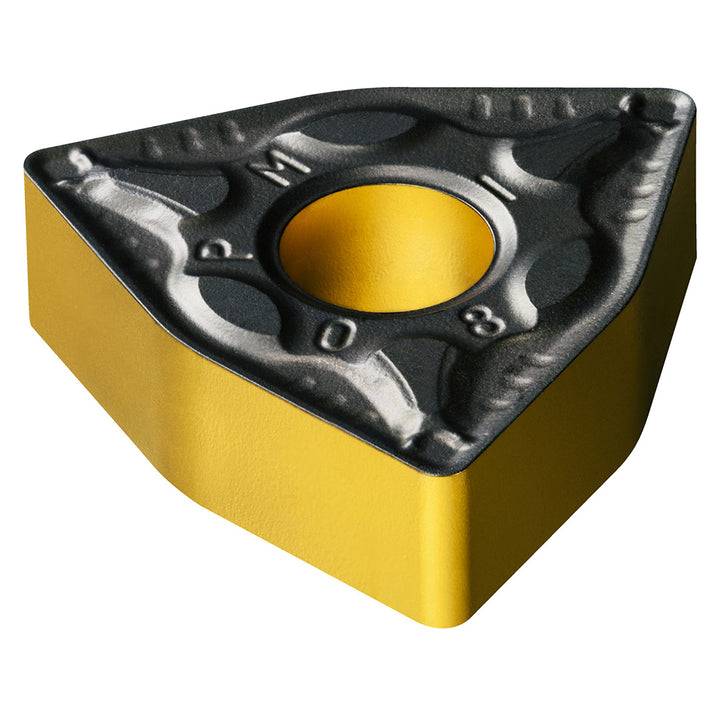

WNMG 08 04 08-PM 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860467
MFR# 7860467ISO/ANSI# WNMG 08 04 08-PM 4415Cat# WNMG 432-PMSeries T-Max P
$21.05List $27.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
Grade4415
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860467 is a WNMG 08 04 08-PM 4415 carbide indexable insert, grade 4415, Al2O3 coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle80
Industry standard numberWNMG 08 04 08-PM 4415
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTrigon
Insert size code0804
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 08-PM 4415
Manufacturers catalog numberWNMG 432-PM
Manufacturer grade4415
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
