Sandvik Coromant

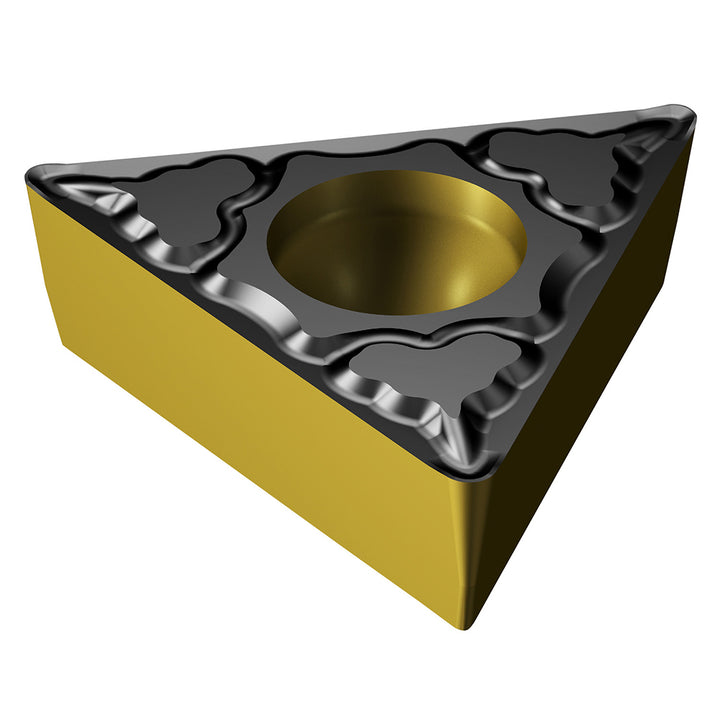

TCMT 09 02 04-PM 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860479
MFR# 7860479ISO/ANSI# TCMT090204PM4415Cat# TCMT1.8(1.5)1PMSeries CoroTurn 107
$14.69List $18.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC7/32
ShapeTriangle
Grade4415
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860479 is a TCMT 09 02 04-PM 4415 carbide indexable insert, grade 4415, Al2O3 coated.
Specifications
Chip breakerT
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius0.0156
Included angle60
Industry standard numberTCMT090204PM4415
Inscribed circle in7/32
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code090204
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT 09 02 04-PM 4415
Manufacturers catalog numberTCMT1.8(1.5)1PM
Manufacturer grade4415
Relief angle7
Tolerance codeM
