Sandvik Coromant

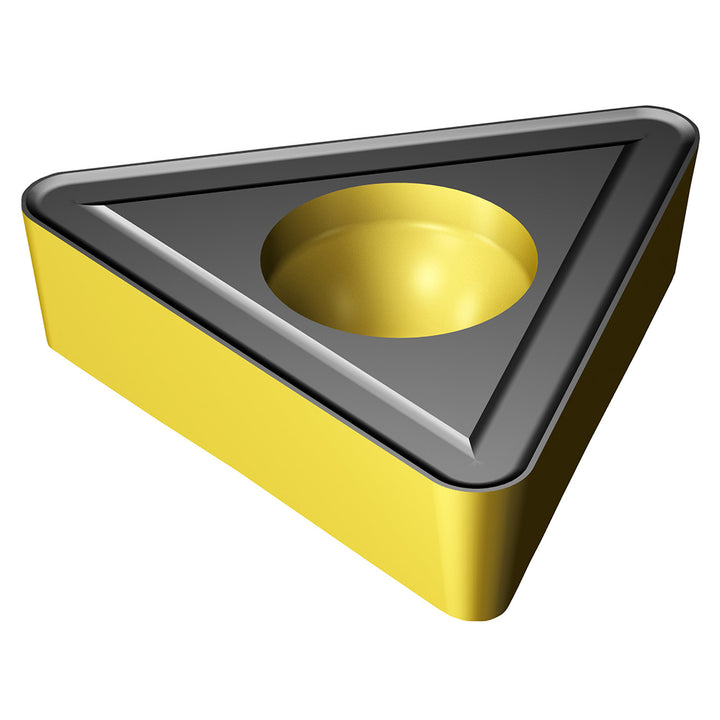

TCMT 16 T3 04-UR 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860498
MFR# 7860498ISO/ANSI# TCMT 16 T3 04-UR 4415Cat# TCMT 3(2.5)1-URSeries CoroTurn 107
$22.29List $28.08
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Check price & lead time first →- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade4415
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860498 is a TCMT 16 T3 04-UR 4415 carbide indexable insert, grade 4415, Al2O3 coated. Suited for steel.
Specifications
Chip breakerUR
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius0.0156
Hole diameter0.1732
Included angle60
Industry standard numberTCMT 16 T3 04-UR 4415
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code16T3
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT 16 T3 04-UR 4415
Manufacturers catalog numberTCMT 3(2.5)1-UR
Manufacturer grade4415
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
