Sandvik Coromant

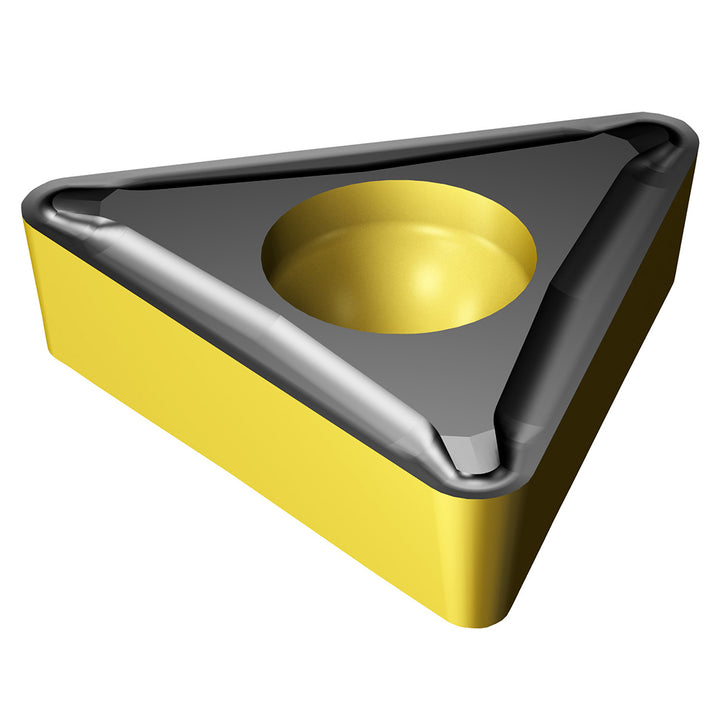

TCMT 16 T3 08-UF 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860501
MFR# 7860501ISO/ANSI# TCMT 16 T3 08-UF 4415Cat# TCMT 3(2.5)2-UFSeries CoroTurn 107
$20.43List $26.21
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade4415
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860501 is a TCMT 16 T3 08-UF 4415 carbide indexable insert, grade 4415, Al2O3 coated. Suited for steel.
Specifications
Chip breakerUF
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.1732
Included angle60
Industry standard numberTCMT 16 T3 08-UF 4415
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code16T3
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT 16 T3 08-UF 4415
Manufacturers catalog numberTCMT 3(2.5)2-UF
Manufacturer grade4415
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
