Sandvik Coromant

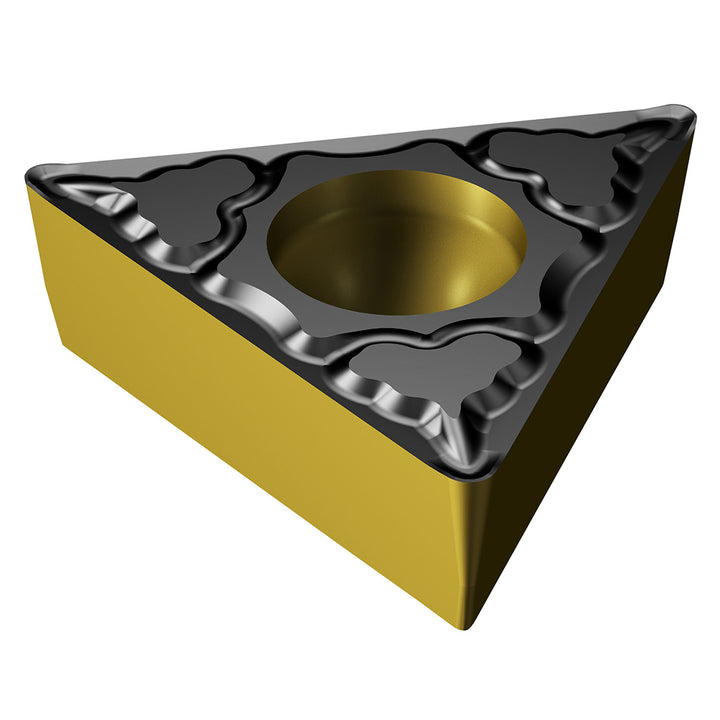

TCMT 16 T3 12-PM 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860504
MFR# 7860504ISO/ANSI# TCMT 16 T3 12-PM 4415Cat# TCMT 3(2.5)3-PMSeries CoroTurn 107
$25.75List $32.45
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade4415
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860504 is a TCMT 16 T3 12-PM 4415 carbide indexable insert, grade 4415, Al2O3 coated.
Specifications
Chip breakerT
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius0.0469
Included angle60
Industry standard numberTCMT 16 T3 12-PM 4415
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code16T312
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT 16 T3 12-PM 4415
Manufacturers catalog numberTCMT 3(2.5)3-PM
Manufacturer grade4415
Relief angle7
Tolerance codeM
