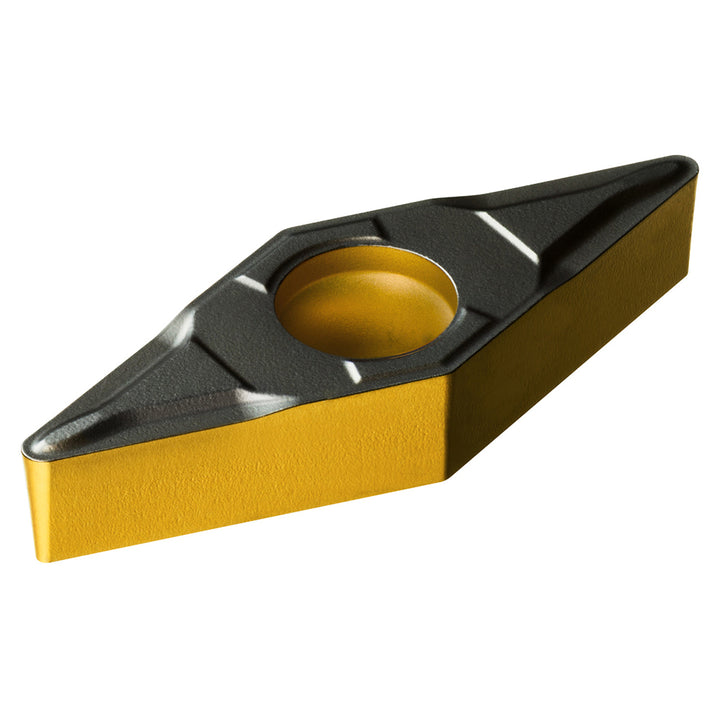

VBMT 11 03 08-PF 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860514
MFR# 7860514ISO/ANSI# VBMT 11 03 08-PF 4415Cat# VBMT 222-PFSeries CoroTurn 107
$25.85List $33.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade4415
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860514 is a VBMT 11 03 08-PF 4415 carbide indexable insert, grade 4415, Al2O3 coated. Suited for steel.
Specifications
Chip breakerPF
Clearance codeB
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.1102
Included angle35
Industry standard numberVBMT 11 03 08-PF 4415
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1103
Insert styleVBMT
Insert thickness in1/8
Iso codeVBMT 11 03 08-PF 4415
Manufacturers catalog numberVBMT 222-PF
Manufacturer grade4415
Number of cutting edges2
Primary workpiece materialSteel
Relief angle5
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
