Sandvik Coromant

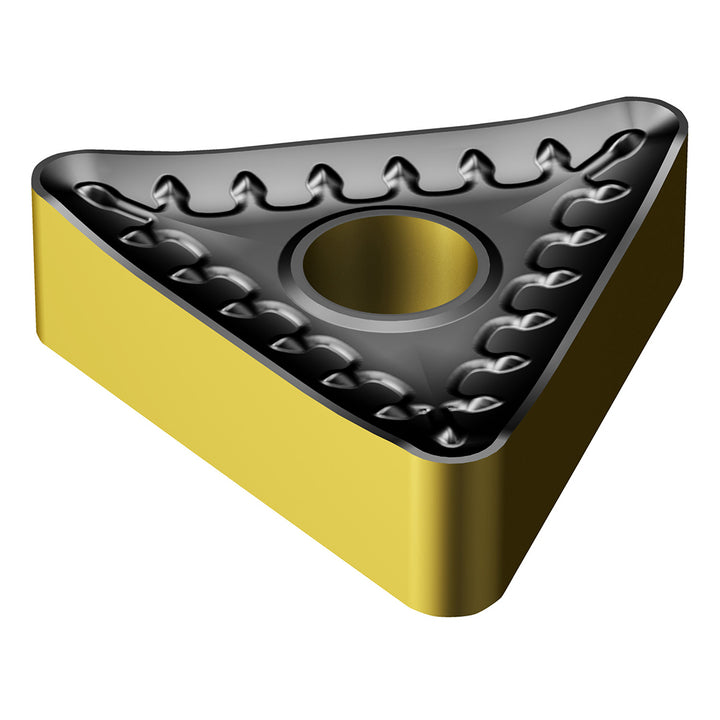

TNMM 22 04 12-QR 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860533
MFR# 7860533ISO/ANSI# TNMM 22 04 12-QR 4415Cat# TNMM 433-QRSeries T-Max P
$23.81List $30.02
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Check price & lead time first →- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade4415
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860533 is a TNMM 22 04 12-QR 4415 carbide indexable insert, grade 4415, Al2O3 coated.
Specifications
Chip breakerM
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0469
Included angle60
Industry standard numberTNMM 22 04 12-QR 4415
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code220412
Insert styleTNMM
Insert thickness in3/16
Iso codeTNMM 22 04 12-QR 4415
Manufacturers catalog numberTNMM 433-QR
Manufacturer grade4415
Relief angle0
Tolerance codeM
