Sandvik Coromant

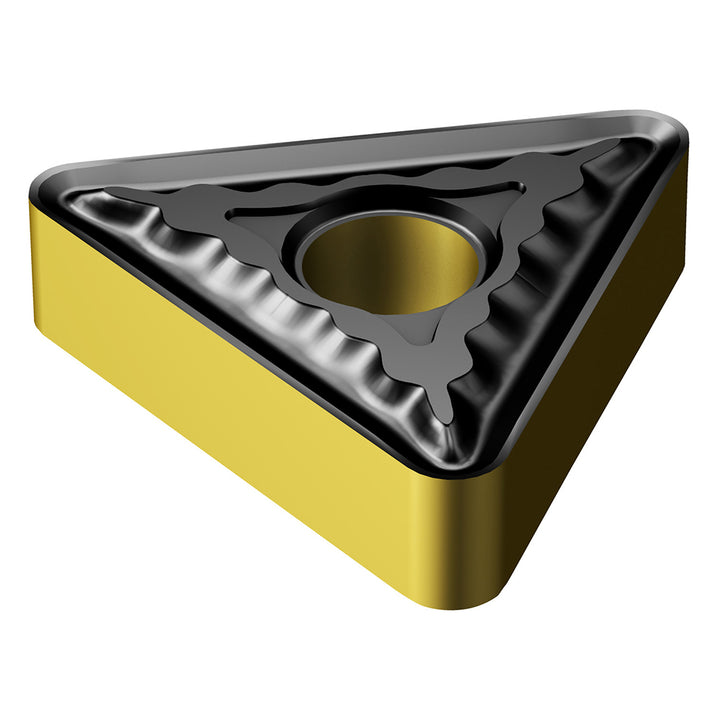

TNMG 11 03 08-QM 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860542
MFR# 7860542ISO/ANSI# TNMG 11 03 08-QM 4415Cat# TNMG 222-QMSeries T-Max P
$10.28List $12.96
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade4415
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860542 is a TNMG 11 03 08-QM 4415 carbide indexable insert, grade 4415, Al2O3 coated. Suited for steel.
Specifications
Chip breakerQM
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.0890
Included angle60
Industry standard numberTNMG 11 03 08-QM 4415
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code1103
Insert styleTNMG
Insert thickness in1/8
Iso codeTNMG 11 03 08-QM 4415
Manufacturers catalog numberTNMG 222-QM
Manufacturer grade4415
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
