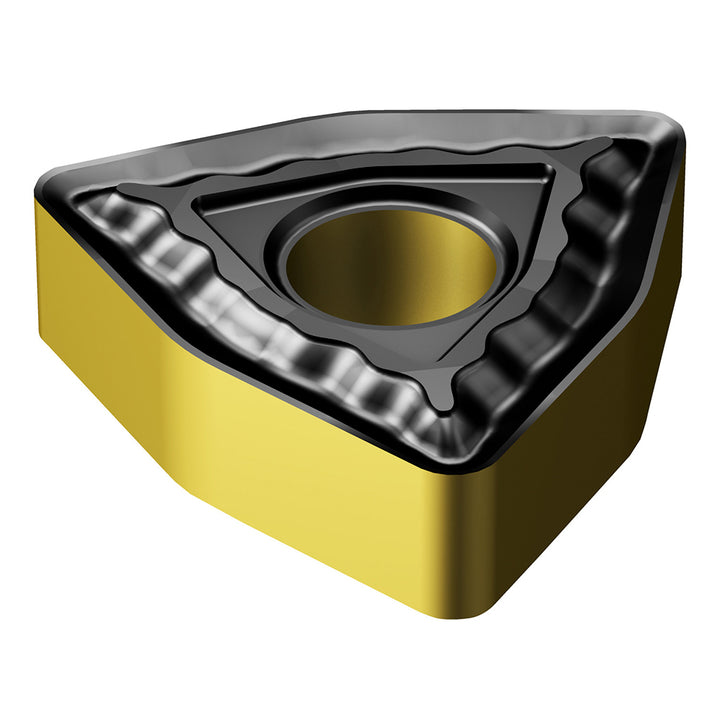

WNMG 08 04 04-QM 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860553

Sandvik Coromant

WNMG 08 04 04-QM 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860553

MFR# 7860553ISO/ANSI# WNMG 08 04 04-QM 4415Cat# WNMG 431-QMSeries T-Max P

$23.14List $29.16 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTrigon
Grade4415
MaterialCarbide
CoatingAl2O3

Description

The Sandvik Coromant 7860553 is a WNMG 08 04 04-QM 4415 carbide indexable insert, grade 4415, Al2O3 coated.

Specifications

Chip breakerG
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0156
Included angle80
Industry standard numberWNMG 08 04 04-QM 4415
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTrigon
Insert size code080404
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 04-QM 4415
Manufacturers catalog numberWNMG 431-QM
Manufacturer grade4415
Relief angle0
Tolerance codeM
