Sandvik Coromant

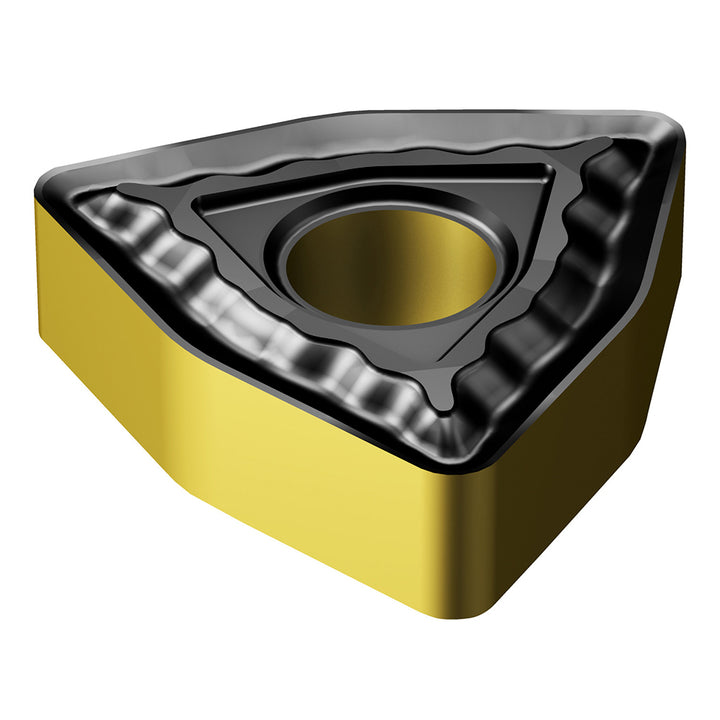

WNMG 08 04 12-QM 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860555
MFR# 7860555ISO/ANSI# WNMG 08 04 12-QM 4415Cat# WNMG 433-QMSeries T-Max P
$21.69List $27.33
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade4415
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860555 is a WNMG 08 04 12-QM 4415 carbide indexable insert, grade 4415, Al2O3 coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0469
Included angle80
Industry standard numberWNMG 08 04 12-QM 4415
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code080412
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 12-QM 4415
Manufacturers catalog numberWNMG 433-QM
Manufacturer grade4415
Relief angle0
Tolerance codeM
